SMD Quality LED's
12 watt - energy saving - long life
Quality PMMA Diffuser for even lighting
Dimensions: 300mm x 95mm
CCT: 4000K. Lum Flux: 840lm
230/240V-50Hz
IP44 from ceiling side
SMD Quality LED's
18 watt energy saving- long life
Quality PMMA Diffuser for even lighting
Dimensions: 350mm x 105mm
CCT: 4000K. Lux Flux: 1200lm
230/240V-50Hz
IP44 from ceiling side
Concealed inbuilt Microwave High Frequency 360º Sensor
SMD Quality LED's
18 watt energy saving -long life
Quality PMMA Diffuser for even lighting
Auto-Sensing according to control settings
Sensor Adj: Time, Lux & Sensitivity
CCT: 4000K. Lum Flux: 1200lm
Dimensions: 350mm x 105mm
230/240V-50Hz
IP44

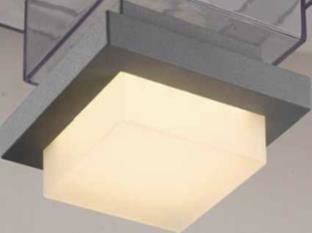

Large Square LED Light
Quality Powder Coated Aluminium body.
Opal PC Diffuser
Wall and Ceiling mounted
SMD LED's 5050 x 49/9.8 watts
Luminous flux: 637lm. Warm White 3K
Dimensions: 220mm x 220mm x 65mm
Input 240V/50Hz
IP54
*Available in Black and in Silver*
Button Light suitable for corridors, walls & ceilings
Strong Poly Carb diffuser
Die-Cast Aluminium housing in Silver
Weatherproof and Dust Proof
27 x SMD LED's. Warm White 3K 272lm
Diam: 140mm x Depth: 64mm
3 watts at 126º emitting angle
Input: 240V/50Hz
IP54
*Available in Black and in Silver*
Two versions: Day & Night
Dusk to Dawn.
Both models in Warm White (3K) & Daylight (5K)
10 watt LED SMD PIR Sensor Downlight
SAA driver, plug and lead included
Non Dimmable. No Manual Override
Time on: 90 seconds (fixed) with Automatic Sensor
Diam: 110mm. Cut-out: 90mm
Beam Angle: 90/100º approx
Sensor Angle: 140º
Sensor Radius approx: 5m when mounted at 2.5m
Lux settings: Dusk to Dawn (below 15 lux operation)
Lux settings: Day & Night (all lux levels operation)
IP44
10 watt SMD LED's
White Trim only
Flush PMMA Diffuser with even light output
Integrated Dimmable Driver, cord & plug are included
Beam Angle: 90º
Cut-out 90-100mm.
Diam: 115mm x 58mm
Available in Warm White (3K) 800lm
Available in Daylight (5K). 880lm
IP44. Indoor use only
CA-80
Quality Bridgelux COB LED 10 watts
Replacement for existing Halogen MR16 Downlight
Dimmable with most leading & trailing edge dimmers
Gimble Downlight, driver, flex & plug included
Highly efficient heat sink
Super light output & special reflector
Gimble cut-out:90mm.
Beam Angle:60º
Downlight diam: 50mm x 74mm
Lum flux:WW 3K 720lm. DL 5500K 780lm
Input 240V/50Hz. Indoor use only
IP20 Not suitable for wet/damp locations
Quality Bridgelux COB LED 10 watts White Downlight
Replacement for existing Halogen MR16 Downlight
Dimmable with most leading & trailing edge dimmers
Driver, flex & plug included
Highly efficient heat sink
Super light output & special reflector
Beam Angle: 60º
Diam: 50mm x 74mm
Lum flux:WW 3K 720lm. DL: 5500K 780lm
Input 240V/50Hz. Indoor use only
IP20 Not suitable for wet/damp locations
Satin Nickel
13 watt Samsung SMD LED's
Flush Opal diffuser, Satin Nickel trim
Dimmable driver, flex & plug included
Cut-out 90-95mm
Beam Angle: 90º
Available in White, Satin Nickel & Silver
Warm White 3K 750lm
(White, Satin Nickel & Silver)
Daylight 5K 920lm (White only)
Indoor use only
IP44
*Available also in White *
10 watt SMD LED's Ideal Dimmable Downlight
Integrated Polyamide body
Excellent heat dissipation design
Dimmable driver, flex & plug included
Cut-out: 92mm.
Dimensions:108mm x 60mm
Beam Angle: 100º
Warm White (3K) 730lm
Daylight (5K) 800lm
CRI: >80. CA: -80
Input: 240V/50Hz
IP44
*Available in all White and White with Silver trim*
Dusk to Dawn version only.
Warm White only (3000K)
15 watt LED SMD Sensor Downlight
PIR Auto Sensor
SAA driver, plug and lead included
Lux preset is 50 (Dusk to Dawn) 1200lm
Time on: 90 seconds (fixed)
No Manual Override. Non Dimmable
Diam: 145mm. Cut-out: 120mm
Sensor Angle approx: 140º
Indoor Use IP44
12V single CTC Square Crystal & Chrome Finish light on round back plate
12V G4 Halogen 20 watt bi-pin globe included
12V transformer/driver is required. (not included)
Diam: 80mm. Projection: 55mm
IP44 sealed - preventing ceiling moisture ingress
Indoor use only
*Available separately, 12V dimmable drivers. 20-70W (RAPS70D) & 20-150W (RAPS150D)*
12V G4 Single CTC Crystal & Chrome Finish on round back plate
12V G4 Halogen 20w bi-pin globes are included
12V transformer/driver is required (not included)
Diam: 80mm round
Projection: 55mm
IP44 sealed
Indoor use only
*Available separately, 12V dimmable drivers, 20-70w (RAPS70D) & 20-150w (RAPS150D)*
12V 4 light CTC Crystal & Chrome Finish light on square back plate
12 G4 Halogen 20w bi-pin globes are included
12V transformer/driver is required. (not included)
Diam: 170mm x 170mm square back plate
Projection: 90mm
IP44 sealed
Indoor use only
*Available separately, 12V dimmable drivers. 20-70W (RAPS70D) & 20-150W (RAPS150D)*
12V Round CTC 4 Crystal Light on Chrome Finish back plate
12V G4 Halogen 20w bi-pin globes are included
12V transformer/driver is required (not included)
Diam: 170mm round
Projection: 90mm
IP44 sealed
Indoor use only
*Available separately, 12V dimmable drivers 20-70W (RAPS70D) & 20-150W (RAPS150D)*
Dimmable Electronic Transformer
Length: 140mm x Depth: 36mm
IP65 protection (Not able to be buried)
Dimmable with most standard dimmers
Soft start protects filaments & prolongs lamp life
Input voltage surge protection
Radio interference suppression
Thermal protection
Ideal for bathroom, laundry or damp area
Dimmable Electronic Transformer
Length: 140mm x Depth: 36mm
IP65 protection (Not able to be buried)
Dimmable with most standard dimmers
Soft start protects filaments & prolongs lamp life
Input voltage surge protection
Radio interference suppression
Thermal protection
Ideal for bathroom, laundry or damp area
